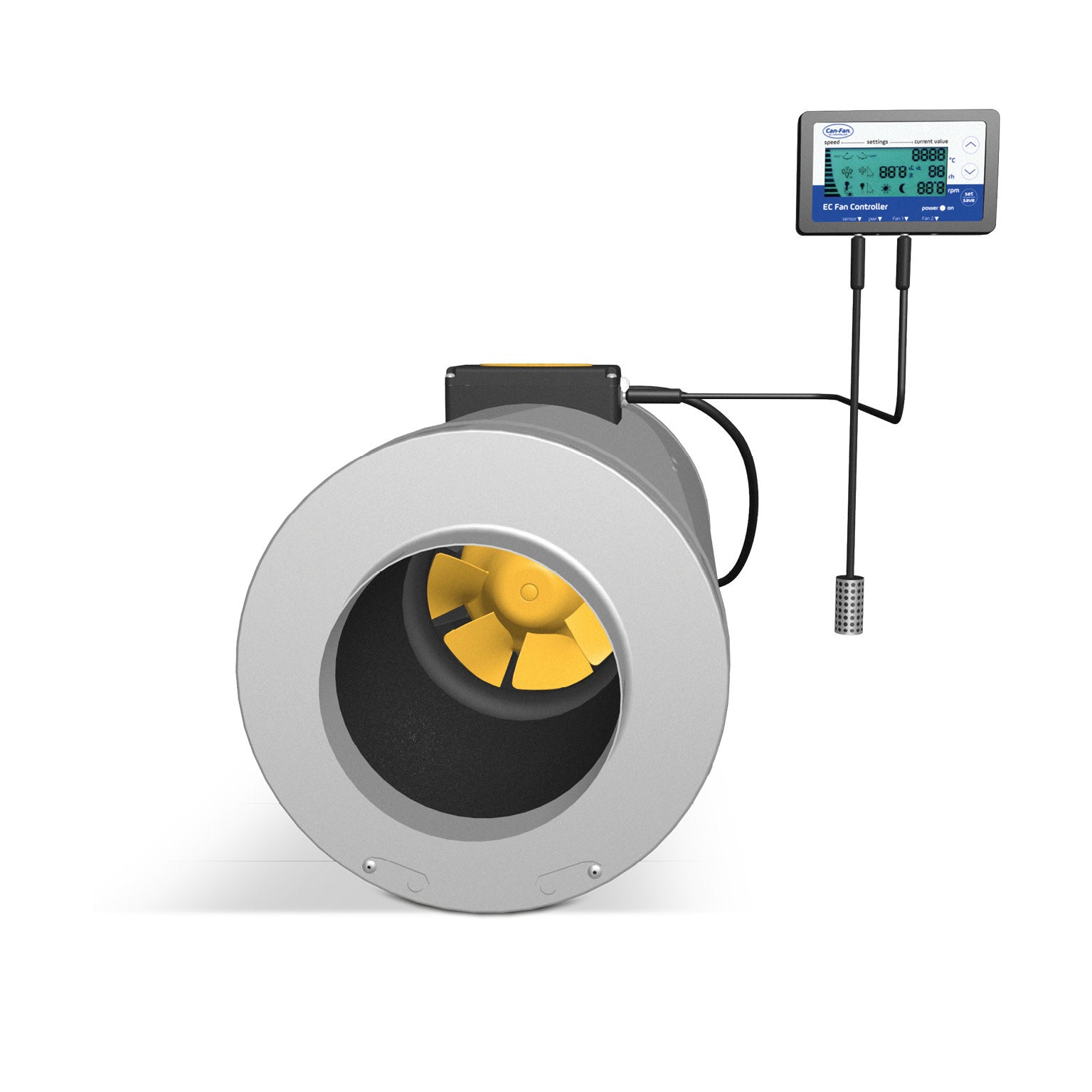

Can-Fan Q-Max-Fan EC 160/746 Duct fan
The Can-Fan Q-Max-Fan EC 160/746 Duct fan is a powerful and energy-efficient fan with a diameter of 160 mm and a capacity of 746 m³/h. This tube fan uses the new EC technology motor, giving it the highest aerodynamic efficiency and low energy consumption.
The Q-Max-Fan EC 160/746 is a turbine or mixed flow fan with a sound-absorbing effect. This is achieved by the 3D rotor stator system in combination with the silencer. This creates an even, turbulence-free airflow and the fan is virtually silent.
To control the fan, there is the Can-Fan EC Controller. With this controller, a maximum of 10 EC motor fans can be connected and controlled simultaneously.
The Q-Max-Fan EC 160/746 is compact, user-friendly and easy to clean. Thanks to the integrated hangers, installation is also easy. In addition, the entire series meets the mandatory ErP requirements for all fans sold in the EU.
For optimal performance, the use of Q-Max-Fan EC in combination with Can Filters is highly recommended.
Specifications:
- Material: Metal
- Weight: 7.2 kg
- Diameter: 160mm
- Capacity: 746 m³/h
- Current: 0.6 A
- Power: 68 W
- Speed controller allowed: Yes
Combination with filters:
- CAN LITE 600
- CAN LITE 800
- CAN350BFT
-W/50
- CAN IN-LINE 600
For more technical information you can download the technical data sheet.
